!!SHIPPING NOT INCLUDED WITH PRICE!!

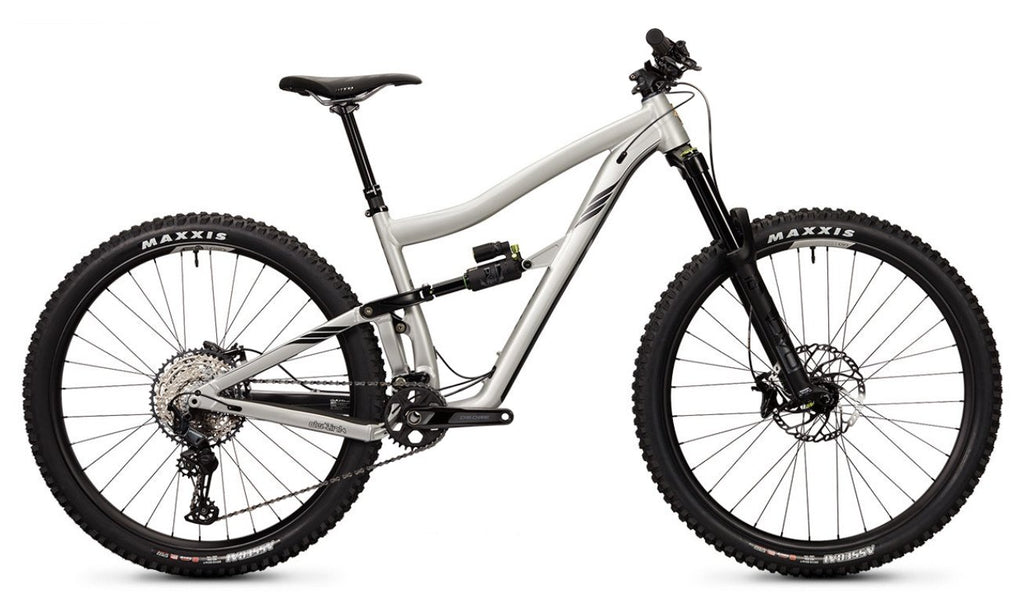

Product Ibis Ripmo AF Deore Bike
Model Year 2021
Wheel Size: 29"
Frame Material: Aluminum
Frame Material Details: Molded chainstay and seatstay protection
Rear Travel: 147mm
Rear Shock: DVO Topaz T3 Air, 210mm x 55mm
Optional upgrade: DVO Jade X Coil
Fork: DVO Onyx D1
Fork Travel: 160mm
Head Tube Diameter: Tapered 1.125" top, 1.5" bottom
Headset: Cane Creek 40, ZS44 upper, ZS56 lower
Handlebar: Ibis aluminum, 780mm width, 4° upsweep, 9° backsweep, 20mm rise
Stem: Ibis, 31.8mm bar clamp
Length: 40mm (SM/MD), 50mm (LG/XL)
Grips: Lizard Skins Charger
Brakes: Shimano Deore M6120, 4-piston, Shimano RT66 rotors (203mm front, 180mm rear)
Brake Levers: Shimano Deore M6120
Shifters: Shimano Deore M6100, 12-speed
Rear Derailleur: Shimano Deore M6100, 12-speed, SHADOW RD+
Cranks: Shimano Deore M6100, 24mm spindle
Length: 170mm (SM/MD), 175mm (LG/XL)
Chainrings: Shimano Deore M6100, 30 tooth, alloy
Bottom Bracket: Shimano BB52, 73mm BSA threaded
Chain: Shimano Deore M6100, 12-speed
Cassette: Shimano Deore M6100, 12-speed, 10-51 tooth
Rims: Ibis S35 aluminum
Hubs: Ibis, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Tires: Maxxis Assegai, EXO+ casing, 120 TPI, 29” x 2.5” WT
Saddle: WTB Silverado, 142mm width
Seatpost: KS Rage-i dropper
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter: 31.6mm
Seatpost Clamp: Standard single bolt
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.6"
Bottle Cage Mounts: One inside front triangle
Colors: Metal
Warranty: 7 years frame, rims, and Ibis handlebars; 1 year paint and finish; lifetime pivot bushings
